Product Details:
|
| Product Name: | Stainless Steel Profile | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
|---|---|---|---|
| Payment Term: | L/C T/T (30% Deposit) | Technique: | Cold Rolled Hot Rolled |
| Standard: | GB JIS EN ASTM, AiSi, ASTM, Bs, DIN, GB, JIS | Grade: | 201,304,309,316,316L,321,410,430,904, 200 Series,300 Serie |
| Shape: | U Channel/C Channel | Perforated Or Not: | Not Perforated, Not Perforated |
| Processing Service: | Bending, Welding, Punching, Decoiling, Cutting | Surface Treatment: | Clean, Blasting And Painting |
| High Light: | sus304 Stainless Steel Channel pumao,430 Stainless Steel Channel pumao,8K surface u section stainless steel pumao |
||

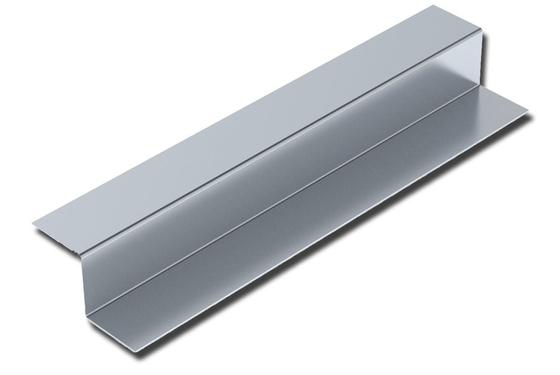

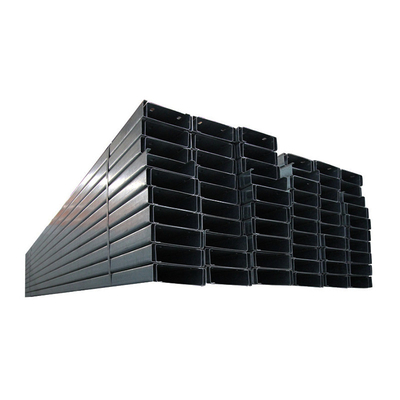

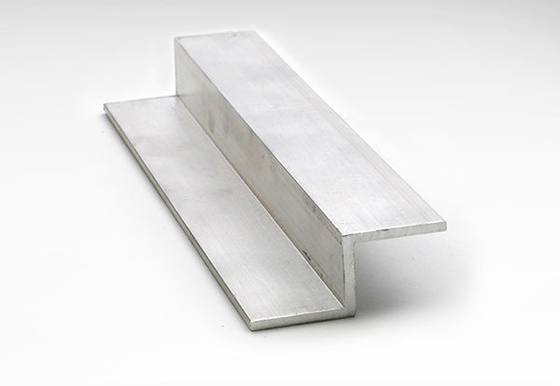

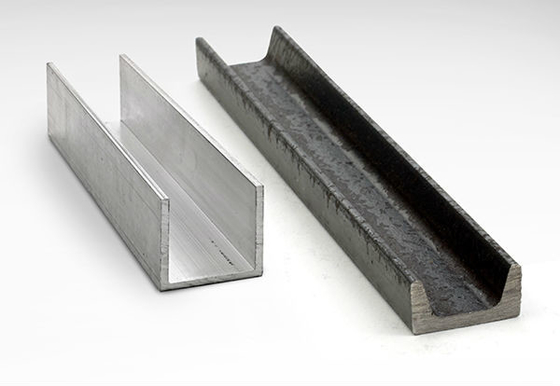

Factory direct sell 321 904 stainless steel u channel c channel profile
We produce and distribute hot rolled and laser fused stainless steel channels throughout the world in both imperial and metric sizes. Please select the catalog for your region below to view a list of available standard size channels. Our range of capabilities far exceeds standard sections, though. We are a profile solutions company, and custom shapes, sizes and alloys are available upon request. If you do not see what you are looking for, please contact us, and our experienced staff will help guide you with your custom profile needs. If you can dream it up, chances are we can make it.
|
Name
|
Stainless steel pipe,201stainless steel,304 stainless steel,316 stainless steel
|
|
Certificate
|
SGS,ISO,BV
|
|
Surface
|
2B,BA(bright annealed) NO.1 NO.2 NO.3 NO.4,8K HL(Hair Line) PVC
|
|
Thickness
|
0.2/0.3/0.4/0.5/0.6/0.7/0.8/0.9/1/2/3/4/5/6/7/8/9mm...
|
|
Width
|
10/20/30/40/50/60/70/80/90/100/200/300/400/500/600/700/800mm..
|
|
Length
|
1/2/3/4/5/6/7/8/9/10/20/30/40/50m...
|
|
Grade
|
201/202/303/304/304ji/304L/309s/310s/316/316L/316Ti/409/410/430/904L.etc
|
|
Delivery
|
15-20 days after the deposit or LC.
|
|
Payment
|
T/T, Western union, Paypal.etc
|
|
Sample
|
Free samples always but freight should be collected at your side.
|
|
|
Stable quality with reasonable price.
|
|
Good shaping capability,weld bending capability,high thermal conductivity,low thermal expansion with our 7x24 after-sales service
|
|
|
Shipment
|
Three days for samples and 7 days for batch production.
|
|
Product Name
|
Hot Rolled Stainless Steel U Channel
|
|
Type
|
U Shape
|
|
Size
|
40*20 --- 200*100
|
|
Thickness
|
4-10 mm
|
|
Length
|
1000-6000 mm
|
|
Surface Finish
|
NO.1
|
|
Grade
|
201, 304, 304S, 316, 316L etc.
|
|
Standard
|
ASME, ASTM, EN, BS, GB, DIN, JIS etc
|
|
Sectional Dimension
|
Kg/m
|
Sectional Dimension
|
Kg/m
|
|
100*50*5*7
|
9.54
|
344*354*16*16
|
131
|
|
100*100*6*8
|
17.2
|
346*174*6*9
|
41.8
|
|
125*60*6*8
|
13.3
|
350*175*7*11
|
50
|
|
125*125*6.5*9
|
23.8
|
344*348*10*16
|
115
|
|
148*100*6*9
|
21.4
|
350*350*12*19
|
137
|
|
150*75*5*7
|
14.3
|
388*402*15*15
|
141
|
|
150*150*7*10
|
31.9
|
390*300*10*16
|
107
|
|
175*90*5*8
|
18.2
|
394*398*11*18
|
147
|
|
175*175*7.5*11
|
40.3
|
400*150*8*13
|
55.8
|
|
194*150*6*9
|
31.2
|
396*199*7*11
|
56.7
|
|
198*99*4.5*7
|
18.5
|
400*200*8*13
|
66
|
|
200*100*5.5*8
|
21.7
|
400*400*13*21
|
172
|
|
200*200*8*12
|
50.5
|
400*408*21*21
|
197
|
|
200*204*12*12
|
72.28
|
414*405*18*28
|
233
|
|
244*175*7*11
|
44.1
|
440*300*11*18
|
124
|
|
244*252*11*11
|
64.4
|
446*199*7*11
|
66.7
|
|
248*124*5*8
|
25.8
|
450*200*9*14
|
76.5
|
|
250*125*6*9
|
29.7
|
482*300*11*15
|
115
|
|
250*250*9*14
|
72.4
|
488*300*11*18
|
129
|
|
250*255*14*14
|
82.2
|
496*199*9*14
|
79.5
|
|
294*200*8*12
|
57.3
|
500*200*10*16
|
89.6
|
|
300*150*6.5*9
|
37.3
|
582*300*12*17
|
137
|
|
294*302*12*12
|
85
|
588*300*12*20
|
151
|
|
300*300*10*15
|
94.5
|
596*199*10*15
|
95.1
|
|
300*305*15*15
|
106
|
600*200*11*17
|
106
|
|
338*351*13*13
|
106
|
700*300*13*24
|
185
|
|
Grade
|
Chemical Composition (%)
|
Mechanical Performance
|
|||||||
|
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
Hardness
|
|
201
|
≤0.15
|
≤1.00
|
5.5/7.5
|
≤0.060
|
≤0.03
|
3.5/5.5
|
16.0/18.0
|
-
|
HB≤241,HRB≤100, HV≤240
|
|
304
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
8.0/11.0
|
18.00/20.00
|
-
|
HB≤187,HRB≤90,HV≤200
|
|
316
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.0
|
HB≤187, HRB≤90 HV≤200
|
|
316L
|
≤0.03
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.0
|
HB≤187, HRB≤90 HV≤200
|
|
410
|
≤0.15
|
≤1.00
|
≤1.25
|
≤0.060
|
≤0.03
|
≤0.060
|
11.5/13.5
|
-
|
HB≤183, HRB≤88 HV≤200
|
|
430
|
≤0.12
|
≤1.00
|
≤1.25
|
≤0.040
|
≤0.03
|
-
|
16.00/18.00
|
-
|
HB≤183, HRB≤88 HV≤200
|
FAQ
Q1: Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2: What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3: It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4: What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5: What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6: What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7: Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8: What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.
Q9: How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, , Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11: Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13: How to pack the products? A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14: What is your working time? A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
