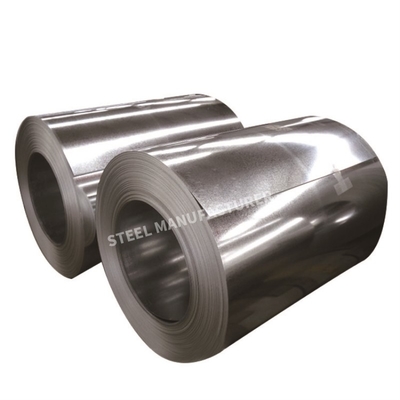

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction

Certification
China JIANGSU LIANZHONG METAL PRODUCTS (GROUP) CO., LTD certification
I'm Online Chat Now

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction
High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction
High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction

Large Image :  High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction

Product Details:
Place of Origin: JIANGSU,CHINA
Brand Name: TISCO
Certification: ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 TON
Price: $550-$650
Packaging Details: Exporting package/wooden box package/Or per customers' requirement
Delivery Time: 7-10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000 tons per month

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction

Description
Stock: Stock Product Name: Galvanized Steel Coil
Grade: DX51D Z275 Z350 Surface Structure: Normal Spangle/Small Spangle/Big Spangle
Terms: FOB,CIF,CFR,C&F,EXW,FCA Cetifecation: CE ISO SGS
Products: Galvanized Steel Coil Technology: Pre Galvanized/hot Dipped
Samples: Sample Freely



High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction



Product Description



Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride.And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.



Specification



Technical Standard
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement
Type
Coil/Sheet/Plate/Strip
Thickness
0.3-6.00mm,or customer's requirement
Width
600mm-1500mm, according to customer's requirement
Type of Coating
Hot Dipped Galvanized Steel(HDGI)
Zinc Coating
30-275g/m2
Surface Treatment
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality
Approved by SGS,ISO
ID
508mm/610mm
Coil Weight
3-20 metric ton per coil
Package
Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Export market
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc



Product Details



High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 0

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 1

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 2

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 3









Surface Structure



High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 4



Packing & Delivery



High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 5

High Quality DX51D Z275 Z350 Hot Dipped Gi Galvanized Steel Coil 0.5mm 0.6mm Thickness For Construction 6



FAQ


1.Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe, and our company also is a very professional a trade company for steel
products.we can also provide a wide range of steel products.



2.Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.



3.Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.



4.Q: Do you accept the third party inspection?
A: Yes absolutely we accept.



5.Q: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected piece by piece according to national QA/QC
standard. We also could issue the warranty to customer to guarantee the quality.



6.Q: How do we trust your company?
A: We specialise in steel business for years, headquarter locates in Jiangsu province, you are welcome to investigate in any
ways.



7.Q: How can I get your quotation as soon as possible?
A: The email and fax will be checked within 24 hours.Please send us your requirement and order information,specification(Steel grade,size,quantity,destination port),we will work out a bestprice soon.
