Product Details:
|
| Delivery Time: | 15-21 Days | Product Name: | Stainless Steel Pipes |
|---|---|---|---|
| Grade: | 304/304L/316/316L | Standard: | JIS, AiSi, ASTM, GB, DIN, EN |
| Type: | Seamless | Application: | Industry, Medicine And Food Industry |
| Outer Diameter: | 20mm-100mm | Tolerance: | ±1% |
| Processing Service: | Bending, Welding, Decoiling, Punching, Cutting, Moulding | Section Shape: | Round |
| Surface Finish: | 2B/BA | Payment Term: | 30%T/T Advance + 70% Balance |
| Technique: | Cold/Hot Rolled | ||
| High Light: | seamless stainless steel pipe 316L,seamless stainless steel pipe 410,seamless stainless steel tubing 420 |
||

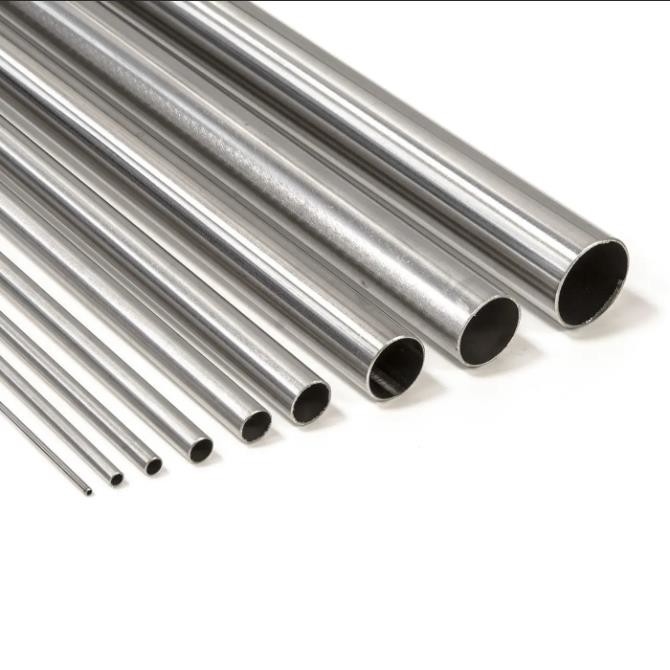

High Quality 316L 410 420 310S Cold Rolled Stainless Steel Pipes/Tubes BA/2B Surface
Why use stainless steel pipe?
Stainless steel pipe resists oxidation, making it a low-maintenance solution that is suitable for high temperature and chemical applications. Because it is easily cleaned and sanitized, stainless steel pipe is also desired for applications involving food, beverages, and pharmaceutical applications.
|
Material
|
200 300 400 Series stainless steel
|
|
Grade
|
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
|
|
Standard
|
AiSi ASTM JIS DIN EN BS
|
|
Tech
|
cold rolled / hot rolled
|
|
Type
|
Welded / Seamless
|
|
Production technique
|
*ss seamless pipe: round steel preparation--heating--hot-rolled--cut head--Pickling--grinding--lubricating--cold rolled--
greased-solution--heat treatment--straightening--cut pipe--Pickling--Product testing. *ss welded pipe: raw material(belt or plate)--slitting--welding pipe--repairing--polishing--inspection(printing)--packaging--shipping(warehousing) (decorative welded pipe). |
|
Section Shape
|
round, square, rectangle
|
|
Thickness
|
0.3MM-3MM
|
|
OD(Outer Diameter)
|
6mm - 2500mm
|
|
Normal size
|
18mm - 60mm
|
|
Length
|
5.8m, 6m, 12m or as per customer's request
|
|
Tolerance
|
Outer diameter: ±0.1mm / Thickness: ±0.02mm / Length: ±1cm
|
|
Processing Service
|
Bending, Welding, Decoiling, Punching, Cutting, Moulding
|
|
Surface Treatment
|
pickled, brightened, annealed, polished(#180, 240, 320, 400, 500, 600, 700, 800 grid), colored
|
|
Payment
|
T/T terms, 30% pre-payment, 70% balance see B/L copy
|
|
Delivery Time
|
5-15 days for ordinary orders (standard orders <=50 ton); specified orders needs final confirmation as per customer's request
|
Product Details
Chemical Composition
| No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
| 17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
| 21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Packing&Delivery
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
