Product Details:
|
| Product Name: | Stainless Steel Profile | Surface: | BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D |
|---|---|---|---|
| Payment Term: | L/C T/T (30% Deposit) | Technique: | Cold Rolled Hot Rolled |
| Standard: | GB JIS EN ASTM, AiSi, ASTM, Bs, DIN, GB, JIS | Grade: | 201,304,309,316,316L,321,410,430,904, 200 Series,300 Serie |
| Shape: | U Channel/C Channel | Perforated Or Not: | Not Perforated, Not Perforated |
| Processing Service: | Bending, Welding, Punching, Decoiling, Cutting | Surface Treatment: | Clean, Blasting And Painting |
| High Light: | JIS EN 20mm stainless steel channel PUMAO,904 20mm stainless steel channel PUMAO,steel c channel profiles SS316L PUMAO |
||
Factory direct sell 321 904 stainless steel u channel c channel profile

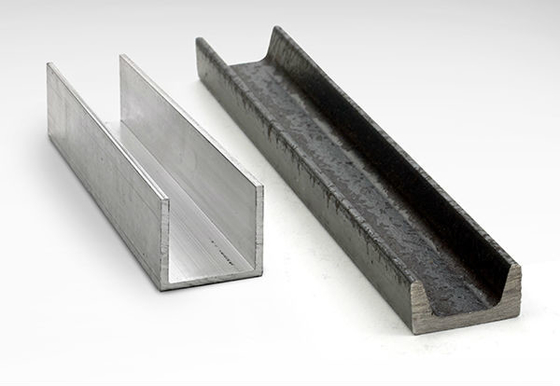

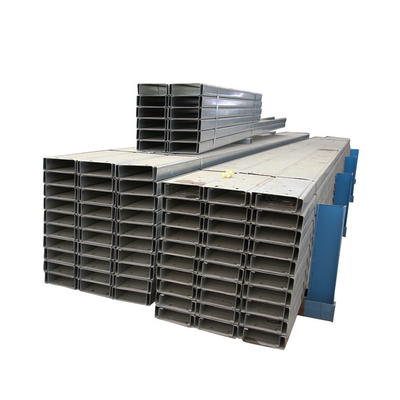

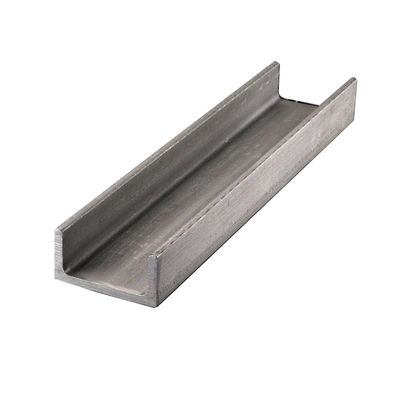

What is stainless steel channel and what is it used for?
Our stocks of stainless-steel channel are supplied in 304 grade steel.
This profile is also commonly referred to as C channel or U channel- depending on your perspective. Channel is on of the most versatile profiles, and this 304-grade channel has excellent formability and weldability with good corrosion resistance.
Our comprehensive product range of channel is available in a wide choice of wall thicknesses and dimensions.
We also supply metal channel in aluminium, brass, and mild steel.
|
item
|
U Shape Tile Trim Stainless Steel
|
|
Warranty
|
2 years
|
|
After-sale Service
|
Online technical support, Onsite Inspection
|
|
Project Solution Capability
|
graphic design, total solution for projects
|
|
Application
|
Hotel
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Tile Accessory Type
|
Tile Trims
|
|
MOQ
|
100 Meters
|
|
Surface treatment
|
8K Mirror
|
|
Length
|
2.44/3.05/4m
|
|
Package
|
100 Pcs/bag
|
|
Shape
|
Great Wall Shape
|
|
Size
|
10*20*10
|
|
Name
|
Stainless steel pipe,201stainless steel,304 stainless steel,316 stainless steel
|
|
Certificate
|
SGS,ISO,BV
|
|
Surface
|
2B,BA(bright annealed) NO.1 NO.2 NO.3 NO.4,8K HL(Hair Line) PVC
|
|
Thickness
|
0.2/0.3/0.4/0.5/0.6/0.7/0.8/0.9/1/2/3/4/5/6/7/8/9mm...
|
|
Width
|
10/20/30/40/50/60/70/80/90/100/200/300/400/500/600/700/800mm..
|
|
Length
|
1/2/3/4/5/6/7/8/9/10/20/30/40/50m...
|
|
Grade
|
201/202/303/304/304ji/304L/309s/310s/316/316L/316Ti/409/410/430/904L.etc
|
|
Delivery
|
15-20 days after the deposit or LC.
|
|
Payment
|
T/T, Western union, Paypal.etc
|
|
Sample
|
Free samples always but freight should be collected at your side.
|
|
|
Stable quality with reasonable price.
|
|
Good shaping capability,weld bending capability,high thermal conductivity,low thermal expansion with our 7x24 after-sales service
|
|
|
Shipment
|
Three days for samples and 7 days for batch production.
|
|
Product Name
|
Hot Rolled Stainless Steel U Channel
|
|
Type
|
U Shape
|
|
Size
|
40*20 --- 200*100
|
|
Thickness
|
4-10 mm
|
|
Length
|
1000-6000 mm
|
|
Surface Finish
|
NO.1
|
|
Grade
|
201, 304, 304S, 316, 316L etc.
|
|
Standard
|
ASME, ASTM, EN, BS, GB, DIN, JIS etc
|
|
Sectional Dimension
|
Kg/m
|
Sectional Dimension
|
Kg/m
|
|
100*50*5*7
|
9.54
|
344*354*16*16
|
131
|
|
100*100*6*8
|
17.2
|
346*174*6*9
|
41.8
|
|
125*60*6*8
|
13.3
|
350*175*7*11
|
50
|
|
125*125*6.5*9
|
23.8
|
344*348*10*16
|
115
|
|
148*100*6*9
|
21.4
|
350*350*12*19
|
137
|
|
150*75*5*7
|
14.3
|
388*402*15*15
|
141
|
|
150*150*7*10
|
31.9
|
390*300*10*16
|
107
|
|
175*90*5*8
|
18.2
|
394*398*11*18
|
147
|
|
175*175*7.5*11
|
40.3
|
400*150*8*13
|
55.8
|
|
194*150*6*9
|
31.2
|
396*199*7*11
|
56.7
|
|
198*99*4.5*7
|
18.5
|
400*200*8*13
|
66
|
|
200*100*5.5*8
|
21.7
|
400*400*13*21
|
172
|
|
200*200*8*12
|
50.5
|
400*408*21*21
|
197
|
|
200*204*12*12
|
72.28
|
414*405*18*28
|
233
|
|
244*175*7*11
|
44.1
|
440*300*11*18
|
124
|
|
244*252*11*11
|
64.4
|
446*199*7*11
|
66.7
|
|
248*124*5*8
|
25.8
|
450*200*9*14
|
76.5
|
|
250*125*6*9
|
29.7
|
482*300*11*15
|
115
|
|
250*250*9*14
|
72.4
|
488*300*11*18
|
129
|
|
250*255*14*14
|
82.2
|
496*199*9*14
|
79.5
|
|
294*200*8*12
|
57.3
|
500*200*10*16
|
89.6
|
|
300*150*6.5*9
|
37.3
|
582*300*12*17
|
137
|
|
294*302*12*12
|
85
|
588*300*12*20
|
151
|
|
300*300*10*15
|
94.5
|
596*199*10*15
|
95.1
|
|
300*305*15*15
|
106
|
600*200*11*17
|
106
|
|
338*351*13*13
|
106
|
700*300*13*24
|
185
|
|
Grade
|
Chemical Composition (%)
|
Mechanical Performance
|
|||||||
|
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
Hardness
|
|
201
|
≤0.15
|
≤1.00
|
5.5/7.5
|
≤0.060
|
≤0.03
|
3.5/5.5
|
16.0/18.0
|
-
|
HB≤241,HRB≤100, HV≤240
|
|
304
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
8.0/11.0
|
18.00/20.00
|
-
|
HB≤187,HRB≤90,HV≤200
|
|
316
|
≤0.08
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.0
|
HB≤187, HRB≤90 HV≤200
|
|
316L
|
≤0.03
|
≤1.00
|
≤2.00
|
≤0.045
|
≤0.03
|
10.00/14.00
|
16.0/18.0
|
2.00/3.0
|
HB≤187, HRB≤90 HV≤200
|
|
410
|
≤0.15
|
≤1.00
|
≤1.25
|
≤0.060
|
≤0.03
|
≤0.060
|
11.5/13.5
|
-
|
HB≤183, HRB≤88 HV≤200
|
|
430
|
≤0.12
|
≤1.00
|
≤1.25
|
≤0.040
|
≤0.03
|
-
|
16.00/18.00
|
-
|
HB≤183, HRB≤88 HV≤200
|
FAQ
Q1: Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2: What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3: It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4: What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5: What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6: What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7: Do you provide custom made Products service?
A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8: What are the certifications for your products?
A:We have ISO 9001, MTC, third parties’ inspections are all available such SGS, BV ect.
Q9: How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, , Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11: Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Q13: How to pack the products? A: Standard export sea-worthy packaging, the inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion and various climate changes during ocean transportation.
Q14: What is your working time? A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry in the coming working day.
