Product Details:
|
| Product Name: | Stainless Steel Channel | Standard: | ASTM, AISI, DIN, EN, GB, JIS |
|---|---|---|---|
| Specification: | Customized | Temperature Resistance: | High |
| Thickness: | 4-100mm | Alloy Or Not: | Non-Alloy |
| Samples: | For Free | Strength: | High |
| Grade: | 304 201 316L | ||
| High Light: | Hot Rolled Stainless Steel Angle,ISO9001 Stainless Steel Angle,ASTM Stainless Steel Angle |
||

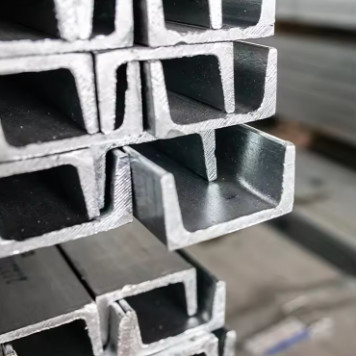

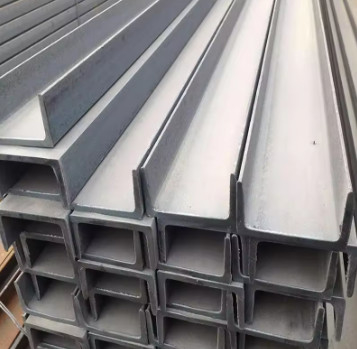

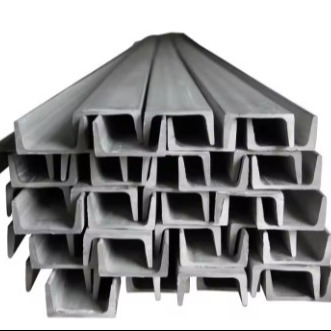

SS ISO9001 ASTM JIS 304 201 316L Stainless Steel Channel Hot Rolled 20mm 30mm Thickness For Industry
Production Description
Channel steel is a long strip of steel with a groove section. It is a carbon structural steel for construction and mechanical use. It is a section steel with a complex cross-section, and its section shape is a groove shape.Channel steel is a kind of long steel with concave section, which belongs to carbon structural steel for construction and machinery. Channel steel is mainly used in building structure, curtain wall engineering, mechanical equipment and vehicle manufacturing.
Specification
|
Name
|
stainless steel channel
|
|
Surface Finish
|
2B, BA, 2D, 8K, HL,No.1, No.4, etc
|
|
Standard
|
GB ASTM, JIS, AISI, DIN, EN
|
|
Steel Grade
|
200/300/400 series
|
|
Tolerance
|
+/-0.01-1.0%
|
|
Length
|
2m, 6m, 9m, 12m or customized
|
|
Size
|
25mm*25mm-200mm*125mm / 50mm*37mm-400mm*104mm
|
|
Service
|
OEM, customized processing service
|
|
Technique
|
Hot rolled/Cold Rolled
|
|
Export packing
|
Standard export seaworthy package
|
|
Delivery time
|
7-15 days after receiving deposit
|
|
Application
|
costruction industry/fabrication industry/home decoration/building materials
|
Product Details
Common Chemical Composition
|
Grade
|
C
|
Si
|
Mn
|
P
|
S
|
Ni
|
Cr
|
Mo
|
|
201
|
≤0.15
|
≤0.75
|
5.5-7.5
|
≤0.06
|
≤ 0.03
|
3.5-5.5
|
16.0-18.0
|
-
|
|
301
|
≤0.15
|
≤1.0
|
≤2.0
|
≤0.045
|
≤ 0.03
|
6.0-8.0
|
16.0-18.0
|
-
|
|
304
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤ 0.03
|
8.0-10.5
|
18.0-20.0
|
-
|
|
304L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.035
|
≤ 0.03
|
9.0-13.0
|
18.0-20.0
|
-
|
|
316
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.045
|
≤ 0.03
|
10.0-14.0
|
16.0-18.0
|
2.0-3.0
|
|
316L
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.045
|
≤ 0.03
|
12.0-15.0
|
16.0-18.0
|
2.0-3.0
|
|
2205
|
≤0.03
|
≤1.0
|
≤2.0
|
≤0.03
|
≤ 0.02
|
4.5-6.5
|
22.0-23.0
|
3.0-3.5
|
|
2507
|
≤0.03
|
≤0.80
|
≤1.2
|
≤0.035
|
≤ 0.02
|
6.0-8.0
|
24.0-26.0
|
3.0-5.0
|
|
310S
|
≤0.08
|
≤1.5
|
≤2.0
|
≤0.035
|
≤ 0.03
|
19.0-22.0
|
24.0-26.0
|
-
|
|
321
|
≤0.08
|
≤1.0
|
≤2.0
|
≤0.035
|
≤ 0.03
|
9.013
|
17.0-19.0
|
-
|
|
410
|
≤0.15
|
≤1.0
|
≤1.0
|
≤0.035
|
≤ 0.03
|
-
|
11.5-13.5
|
-
|
|
430
|
≤0.12
|
≤0.75
|
≤1.0
|
≤0.040
|
≤ 0.03
|
≤0.60
|
16.0-18.0
|
-
|
Packing & Delivery
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
